Stepper Motor Driver

Project Description

The Stepper Motor Driver Module is a high-performance motor control solution designed around the TMC5160 IC from Trinamic. This module is engineered to deliver smooth, silent, and precise motion control for demanding industrial and automation applications.

Built on a 4-layer PCB design, the driver ensures excellent thermal performance, high current handling capability, and signal integrity for SPI communication. The design is modular and compact, allowing the driver to be used as a pluggable module in larger systems.

This driver supports up to 256 microsteps, making it suitable for applications that require ultra-fine positioning and low-noise operation. Advanced control features such as StealthChop and SpreadCycle allow for silent operation in sensitive environments or high-torque operation where required.

Key Features

• Input Voltage: 24V DC supply
• Motor Drive Current: Up to 4.5A continuous
• Microstepping: Configurable up to 1/256 microsteps
• Motor Compatibility: 4-wire bipolar stepper motors
• Protections: Integrated overcurrent and short-circuit protection
• Control Interface: SPI for precise configuration and control
• Modes: StealthChop for silent operation, SpreadCycle for performance
• PCB Design: 4-layer board for improved thermal management and reliability
• Form Factor: Compact, modular, and easily pluggable design

Working

The TMC5160 is an advanced stepper motor driver with integrated motion controller. In this design:

• The microcontroller communicates with the driver over SPI, configuring parameters such as microstepping resolution, motor current, and operational mode.
• The driver IC generates precise current waveforms, enabling smooth and silent stepper motor control.
• StealthChop mode is used for noise-sensitive applications, providing extremely quiet motor motion.
• SpreadCycle mode is available when higher torque or dynamic response is required.
• Protection circuits automatically shut down the driver in the event of overcurrent, short-circuit, or thermal overload, ensuring reliability in industrial environments.
• The 4-layer PCB layout provides improved heat dissipation and noise immunity, essential when driving motors at high currents.

Applications

• 3D Printers – Silent and precise motion for high-quality prints
• CNC Machines – Accurate stepper motor control in multi-axis setups
• Robotics – Smooth and precise actuator control for robotic joints
• Automated Manufacturing – Motion systems requiring reliability and fine control
• Medical Devices – Noise-sensitive environments such as laboratory and diagnostic equipment
• Camera/Optical Systems – Silent motion for pan-tilt heads or precision optics control

Benefits

• Silent Operation: StealthChop mode ensures minimal noise for consumer and medical devices.
• High Precision: 256 microstepping delivers ultra-smooth motion and precise positioning.
• Reliable Design: Built-in protections with a robust 4-layer PCB improve durability.
• Flexible Control: SPI interface allows fine tuning for various applications.
• Compact & Modular: Pluggable design makes it easy to integrate into larger systems.

Technical Specifications

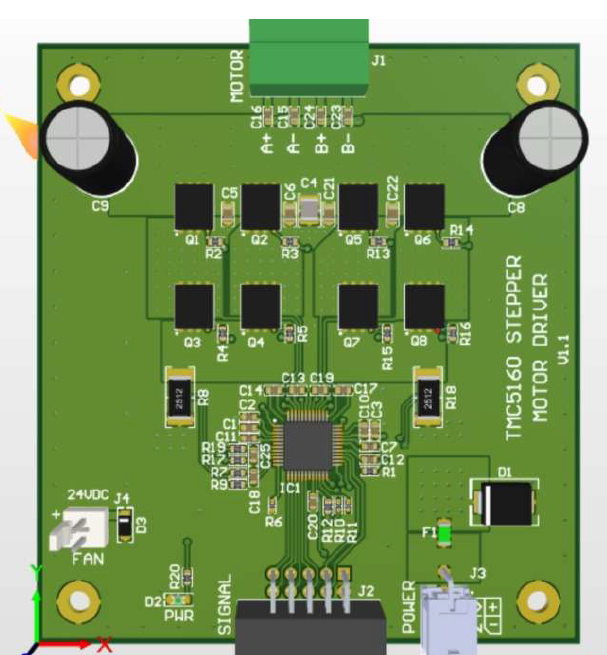

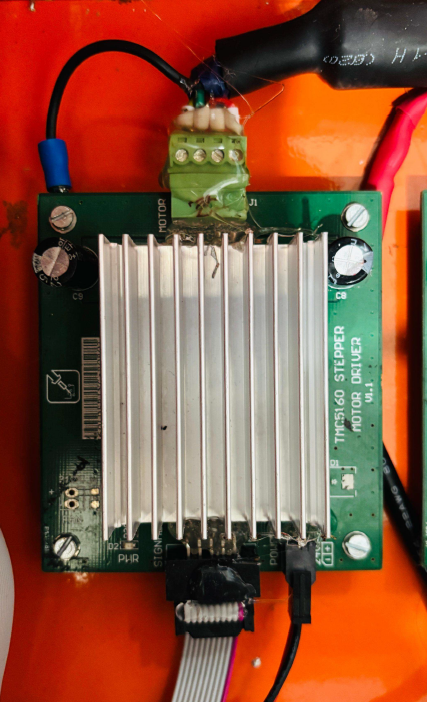

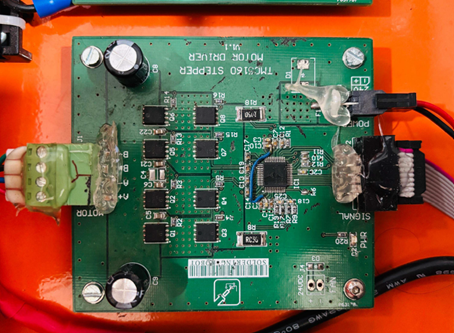

Photos
